High Efficiency HEPA Filter Diffuser Good Sealing Property For Precision Machinery

  • 1
  • 2

Brand Name : indair

Model Number : ID-HB-08

Certification : CE,UL

Place of Origin : China

MOQ : 1 unit

Price : negotiable

Supply Ability : 500 unit pers day

Packaging Details : carton

DOP Test : Available

HEPA Filter : H13 or H14

Material : Extruded Anodized Aluminum

Type : side installation

Size : Customize

Mounting system : Mechanical clamping structures

Contact Now

500Pa GMP Clean Room HEPA Terminal Box 4 * 4 Feet Extruded Anodized Aluminum Frame

cleanroom filter unit HEPA filter box

HEPA diffuser, HEPA filter diffuser box, HEPA filter box

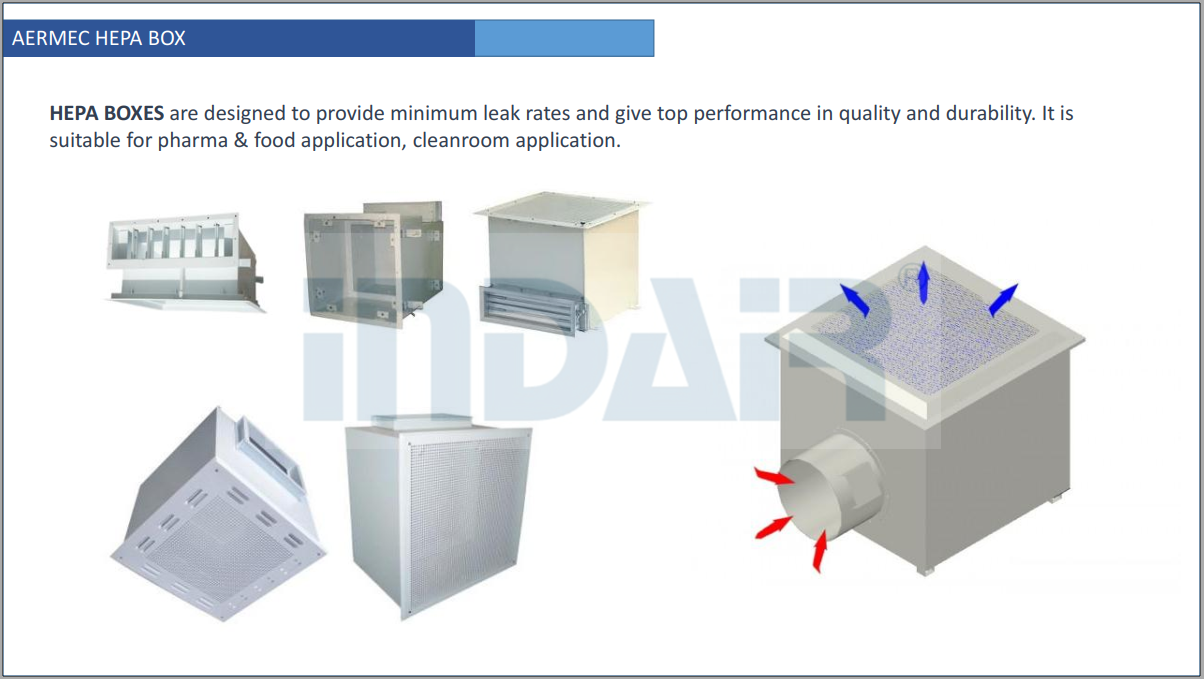

HEPA diffuser is an ideal air fitlering terminal for the clean room or clean workshop.

It consists of plenum box,hepa filter, short air inlet tube and outlet air diffuser board etc.
These series are terminal filter equipments of purification workshop, the shell is made of premium cooled steel plate, static on the surface by spraying; HEPA filter airflow outlet maintain the qulity, the flow and the direction of the air and prevent eddy current from happening; great appearance; less investment; simple structure.

It has an attractive structure, good sealing property and is convenient for both mounting and air volume.The plenum box has both the heat and sound insulating material,which not only purifies the environment, but also has noise elimnination effect.

Therefore, it is especially suitable to apply in industries such as micro-electronics, research, precision machinery, medical care, biochemistry and pharmacy etc.

Specification:

cleanroom filter unit HEPA filter box
1. Filter material:glassfiber
2. Frame:Aluminum profile
3. Efficiency:more than99.99%

Features:

These series are terminal filter equipments of purification system, the shell is made of powder coated steel, static on the surface by spraying; HEPA Filter Box maintains velocity of air flow and prevent eddy current from occurring; Great appearance; Less investment; Simple structure.

Model
Installation dimension of the box
B*A*Hmm
Installation dimension of the box
B*A*H mm
Nominal air flow rate m3/h
Nominal air flow rate m3/h
Pipe connection dimension
E*F mm
External Dimension of the box
T*S*R mm
Weight(kg)
Ceiling air supply
GWT320
370*370*220
320*320*80
360
200*200
250*250
430*430*268
12
GWT350
400*400*220
350*350*80
450
200*200
250*250
460*460*268
14
GWT400
450*450*220
400*400*80
500
200*200
250*250
510*510*268
15
GWT484
534*534*220
484*484*80
800
320*200
270*250
594*594*268
16
GWT550
600*600*220
550*550*80
1000
320*200
370*250
660*660*268
17
GWT610
660*660*220
610*610*69
1000
320*250
370*300
720*720*268
18
GWT820
870*650*220
820*600*69
1300
320*250
370*300
930*710*268
20
GWT630
680*680*220
630*630*80
1500
320*250
370*300
740*740*268
22
GWT726
776*534*220
726*484*80
1200
400*200
450*250
836*594*268
22
GWT915
965*660*220
915*610*69
1500
500*250
550*300
1025*720*268
24
GWT968
1018*534*220
968*484*80
1700
500*200
550*250
1078*594*268
32
GWT1220
1270*660*220
1220*610*69
2000
500*200
550*250
1330*720*268
34
GWT945
995*680*220
945*630*80
2150
500*250
550*300
1055*740*268
32
GWT1260
1310*680*220
1260*630*80
3000
600*250
650*300
1370*740*268
37
